Doors Hand Operated

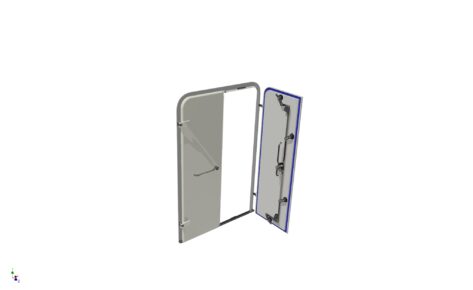

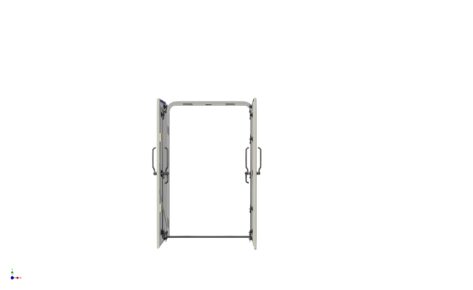

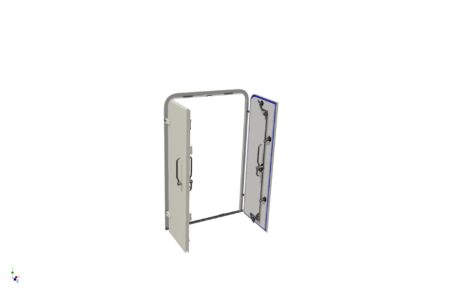

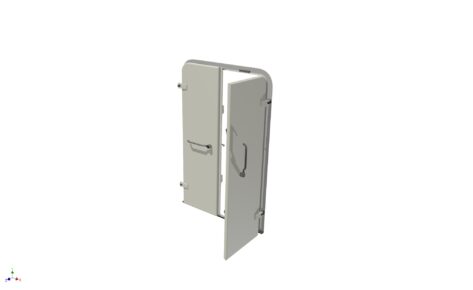

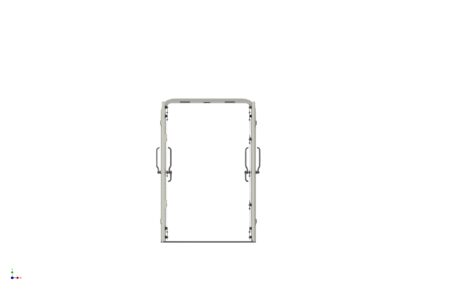

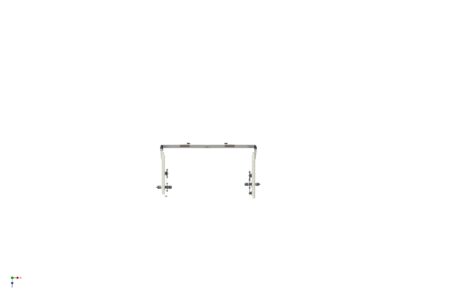

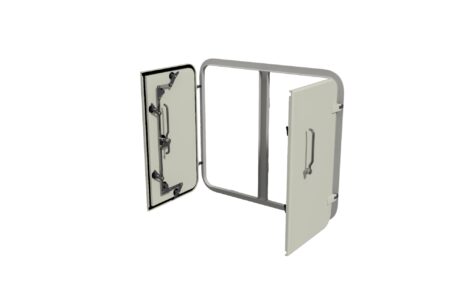

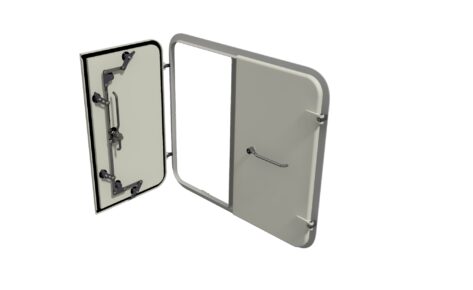

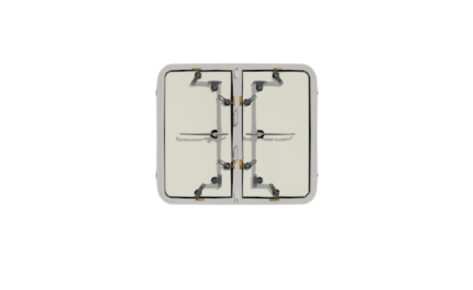

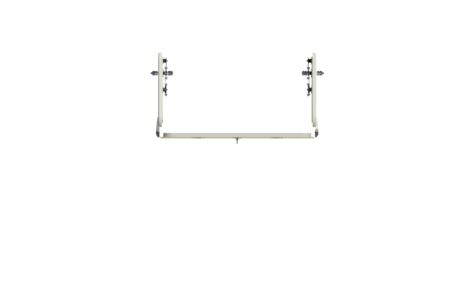

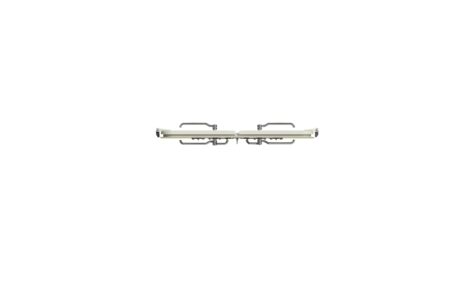

Weathertight and Splashtight Double Doors

2,4 or 6 closing points 8 mm door blade

  • Splashtight due to size

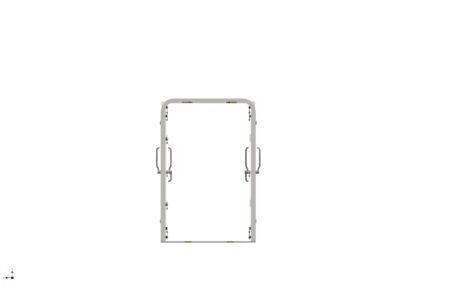

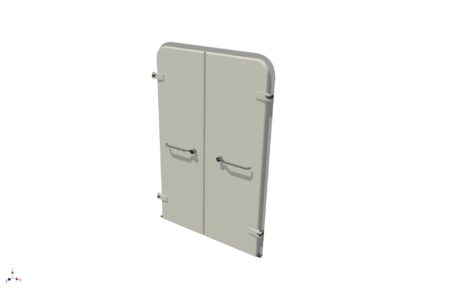

  • low sill or standard sill

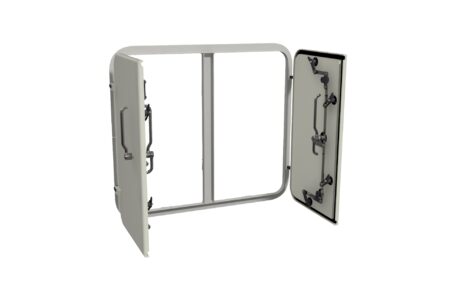

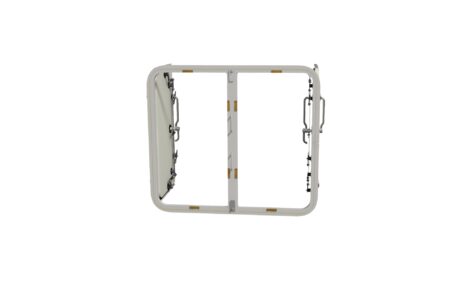

  • with removable million bar or without
  • door blade 8mm, min 4 cleats.
steel
water1
fire0
aluminium
winel_stainlessteel
fire1
fire3

About this product

General information

Winel Musketeer door The Winel Musketeer door includes a wide range of splashtight & weathertight central closing doors build according to international rules & regulations. Musketeer doors are design approved (General DAD) by Class Society.

Min. Width
550mm
Min. Height
550mm
Doorblades
8 mm blades
Closing Points
3.40 metres
Frame
Aluminium, steel, stainless steel
Open Close Indication
Yes
Including
Open, Close indication
Water Pressure
Tested up to 12 mwc
Insulation
A60

Product features

Musketeer doors can be executed in the following combinations:

  • Steel door blade with steel angle bar frame.
  • Steel door blade with steel flush U-frame.
  • Stainless steel door blade with stainless steel angle bar frame.
  • Stainless steel door blade with stainless  steel flush U-frame.
  • Aluminum door blade with steel angle bar frame.
  • Aluminum door blade with aluminium angle bar frame.



Optional: 40mm insulation with coverplate (Sendzimir galvanized, aluminium or stainless steel, depending on door blade material)

By means of the patented Musketeer system; stainless steel central closing mechanism with a quick acting handle on both sides. Self braking cleats operate with single action on the handle, ultra light operation due to 1:33 force transmission. Hinges and cleats are fully

adjustable and maintenance free.

rob-lambert-9Q_pLLP_jmA-unsplash 1 40 mm Cover

Frequently Asked Questions

SOLAS: weathertight means that in any sea conditions water will not penetrate into the ship. A weathertight item is designed to withstand water pressure from one side (the outside). Typical locations are above the waterline, for example on the deck or in the wheelhouse of the ship. Location of doors are indicated with load line position 1 or 2.

Winel has a range of standard sizes (see specification sheets). But one of the key features of Winel is flexibility to work together with shipyards/owner to find solutions for not standard situations. Please be aware that delivery times for non-standard solutions are longer due to engineering and class approvals.

40 mm Cover
100 mm cover
