Tank Vent Check Valve Spares

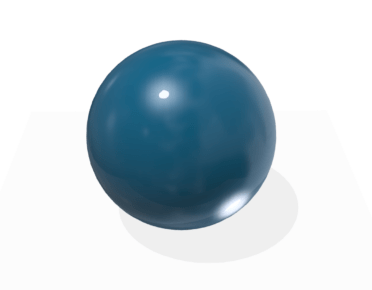

Float Balls PE
Fast delivery
In stock
Float balls are suitable for Winel Tank Vent Check Valve type: RM,RMO,CM, CMO and Bolero

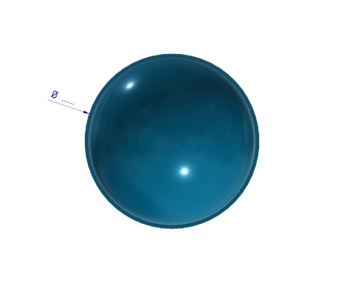

Dimensions in mm
About this product
General information
| Size | Suitable for tank vent check valve type … | Article code | ||||
| 50 mm | 9553.1010.050 | |||||
| 60 mm | CM/CMO DN40 / DN50 | 9553.1010.060 | ||||
| 70 mm | Bolero DN40 / DN50 | 9553.1010.070 | ||||
| 75 mm | CM/CMO DN65 | 9553.1010.075 | ||||
| 85 mm | RM / RMO/E DN40 / DN50; Bolero DN65 | 9553.1010.085 | ||||
| 90 mm | CM/CMO DN80 | 9553.1010.090 | ||||
| 100 mm | Bolero DN80 | 9553.1010.100 | ||||
| 115 mm | 9553.1010.115 | |||||
| 120 mm | RM / RMO/E DN65 / DN80; CM/CMO DN100 | 9553.1010.120 | ||||
| 130 mm | Bolero DN100 | 9553.1010.130 | ||||
| 145 mm | RM / RMO/E DN100; CM/CMO DN125 | 9553.1010.145 | ||||
| 150 mm | 9553.1010.150 | |||||
| 155 mm | Bolero DN125 | 9553.1010.155 | ||||
| 175 mm | CM/CMO DN150 | 9553.1010.175 | ||||
| 185 mm | RM DN125 / DN200; RMO/E DN125; Bolero DN150 | 9553.1010.185 | ||||
| 200 mm | CM/CMO DN175 | 9553.1010.200 | ||||
| 227 mm | CM/CMO DN200 | 9553.1010.227 | ||||
| 240 mm | RM DN150/175/250 RMO/E DN150/175; Bolero DN200 | 9553.1010.240 | ||||
| 300 mm | RM DN300 RMO/E DN200 Bolero DN250/DN300; CM/CMO DN250 | 9553.1010.300 | ||||
| 325 mm | RM DN350/DN400 RMO/E DN250; Bolero DN350 | 9553.1010.325 | ||||
| 340 mm | 9553.1010.340 | |||||
| 360 mm | RM DN450 RMO/E DN300; CM/CMO DN300 | 9553.1010.360 | ||||
| 400 mm | CM/CMO DN350 | 9553.1010.400 | ||||
| 480 mm | CM/CMO DN400 | 9553.1010.480 | ||||
| 500 mm | CM DN450 | 9553.1010.500 | ||||
