Tank Vent Check Valve Spares

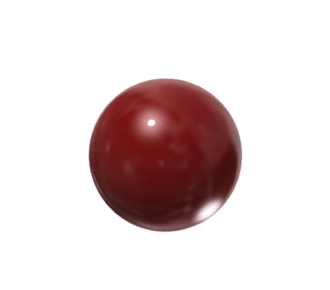

Float Balls PE RED – High Velocity
Fast delivery
€ 0,00
Float balls are suitable for Winel Tank Vent Check Valve type:CM
High Velocity only possible on type : CM

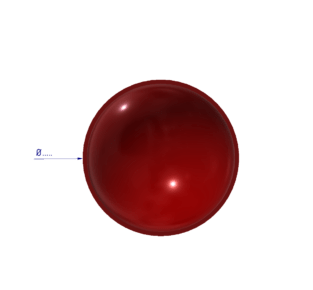

Dimensions in mm
About this product
General information
| Size | Suitable for tank vent check valve type … | Article code | ||||
| 60 mm | CM DN40 / DN50 | 9553.1010.060.R | ||||
| 75 mm | CM DN65 | 9553.1010.075.R | ||||
| 90 mm | CM DN80 | 9553.1010.090.R | ||||
| 120 mm | CM DN100 | 9553.1010.120.R | ||||
| 145 mm | CM DN125 | 9553.1010.145.R | ||||
| 175 mm | CM DN150 | 9553.1010.175.R | ||||
| 200 mm | CM DN175 | 9553.1010.200.R | ||||
| 227 mm | CM DN200 | 9553.1010.227.R | ||||
| 300 mm | CM DN 250 | 9553.1010.300.R | ||||
| 360 mm | CM DN300 | 9553.1010.360.R | ||||
| 400 mm | CM DN350 | 9553.1010.400.R | ||||
| 480 mm | CM DN400 | 9553.1010.480.R | ||||
| 500 mm | CM DN450 | 9553.1010.500.R | ||||
- Min. Width
- 550mm
- Min. Height
- 550mm
- Doorblades
- 8 mm blades
- Closing Points
- 3.40 metres
- Frame
- Aluminium, steel, stainless steel
- Open Close Indication
- Yes
- Including
- Open, Close indication
- Water Pressure
- Tested up to 12 mwc
- Insulation
- A60
|
|
|
|
|
|
|
|
|
|
|
|
