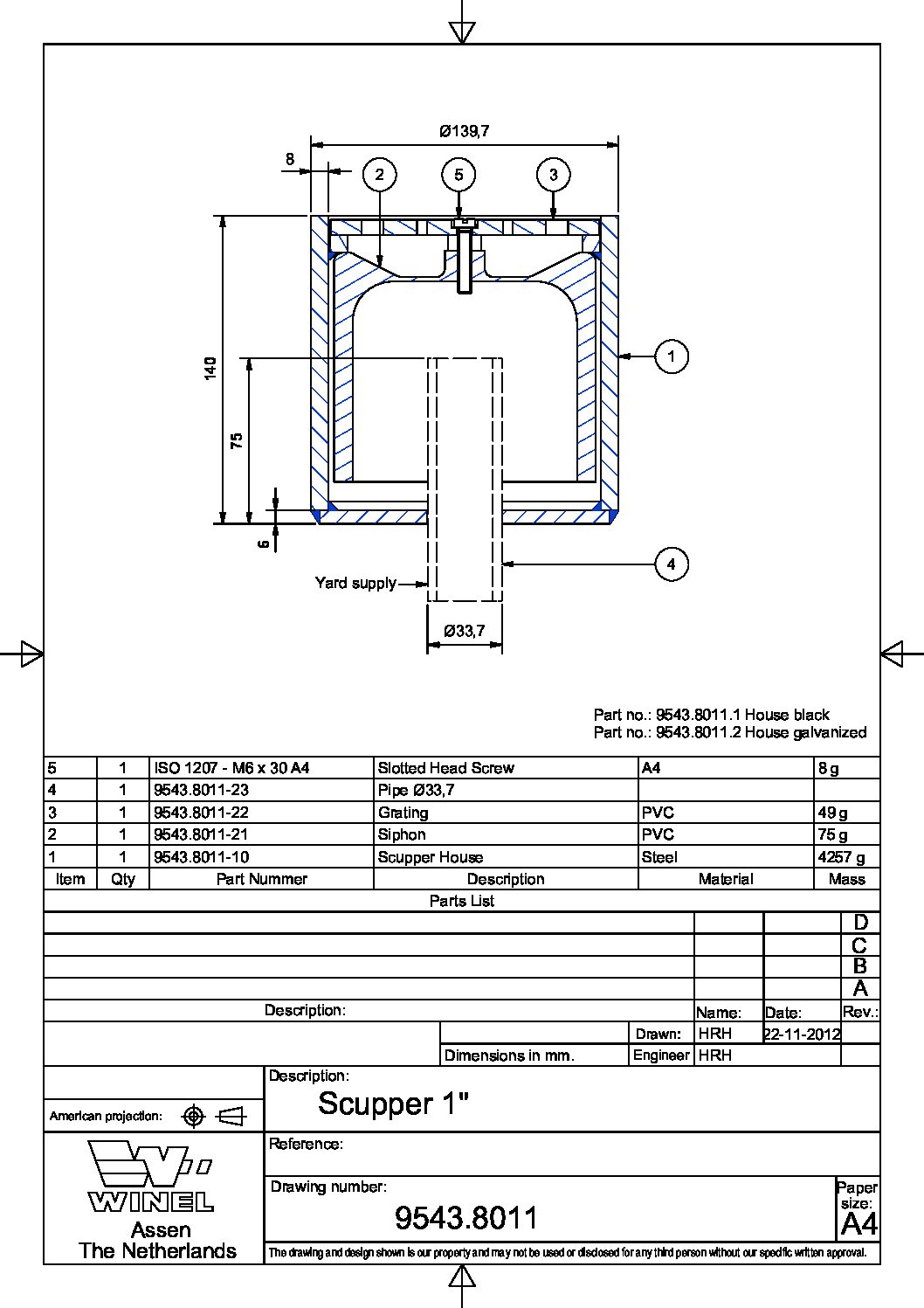

Slim design scupper, ready for welding in deck. Material:

• body, steel (black)
• grating and syphon, PVC

• body steel galvanised
• grating and syphon supplied only

• DN 25 - 1"
• DN 32 - 1 ¼"
• DN 40 - 1 ½"
• DN 50 - 2"
• DN 65 - 2 ½"
• DN 80- 3"

Min. Width 550mm	Min. Height 550mm	Doorblades 8 mm blades
Closing Points 3.40 metres	Frame Aluminium, steel, stainless steel	Open Close Indication Yes
Including Open, Close indication	Water Pressure Tested up to 12 mwc	Insulation A60
