Doors Hand Operated

Watertight Bulkhead Doors

8 mm door blade Water Pressure Tested

  • Resist water pressures ranging up to 12 mWc.
  • Constructed with international standards.
water3
steel
fire0
aluminium
winel_stainlessteel
fire3

About this product

General information

The Winel Musketeer HEAVY door features a variety of waterproof central closing doors that were constructed in accordance with international standards. Our doors are suited for installation in watertight bulkheads since they are built to resist a water pressure ranging up to 12 mWc. A certificate of individual class approval is required.

Min. Width
550mm
Min. Height
550mm
Doorblades
8 mm blades
Closing Points
3.40 metres
Frame
Aluminium, steel, stainless steel
Open Close Indication
Yes
Including
Open, Close indication
Water Pressure
Tested up to 12 mwc
Insulation
A60

Product features

Musketeer HEAVY  doors are executed with 8mm steel door plate, stiffeners and door stoppers to prevent seal damage, as well as a proximity switch for open/close indication. The number of hinges, closing points, stiffeners and thickness of cleats are determined by (a) the size of the door, (b) required water pressure and (c) classification society.

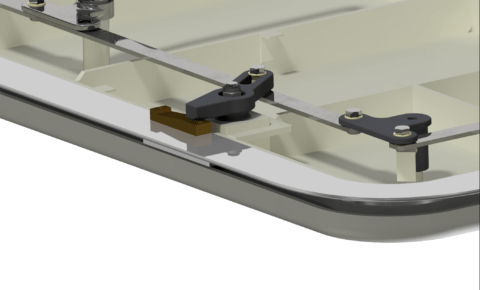

By means of our patented Musketeer system: a stainless steel central closing mechanism with galvanized cleats. Quick acting handle on both sides. Self braking cleats operate with a single action on the handle, with ultra light operation due to 1:33 force transmission. Hinges and cleats are fully adjustable and maintenance free.

IMG_20231113_102832 40 mm Cover

Frequently Asked Questions

SOLAS: Watertight means having scantlings and arrangements capable of preventing the passage of the water in any direction under the head of water likely to occur in intact and damaged conditions. The closure between two compartments below the waterline will typically be watertight. A watertight item withstands a ‘water column’ (water pressure in mwc or bar) from both sides.

Winel Doors and hatches are operated through the patented Winel Musketeer central closing mechanism with stainless steel closing points. Self braking cleats operate with single action on the handle/handwheel. Light operation due to 1:33 force transmission. Cleats are fully adjustable.

40 mm Cover
